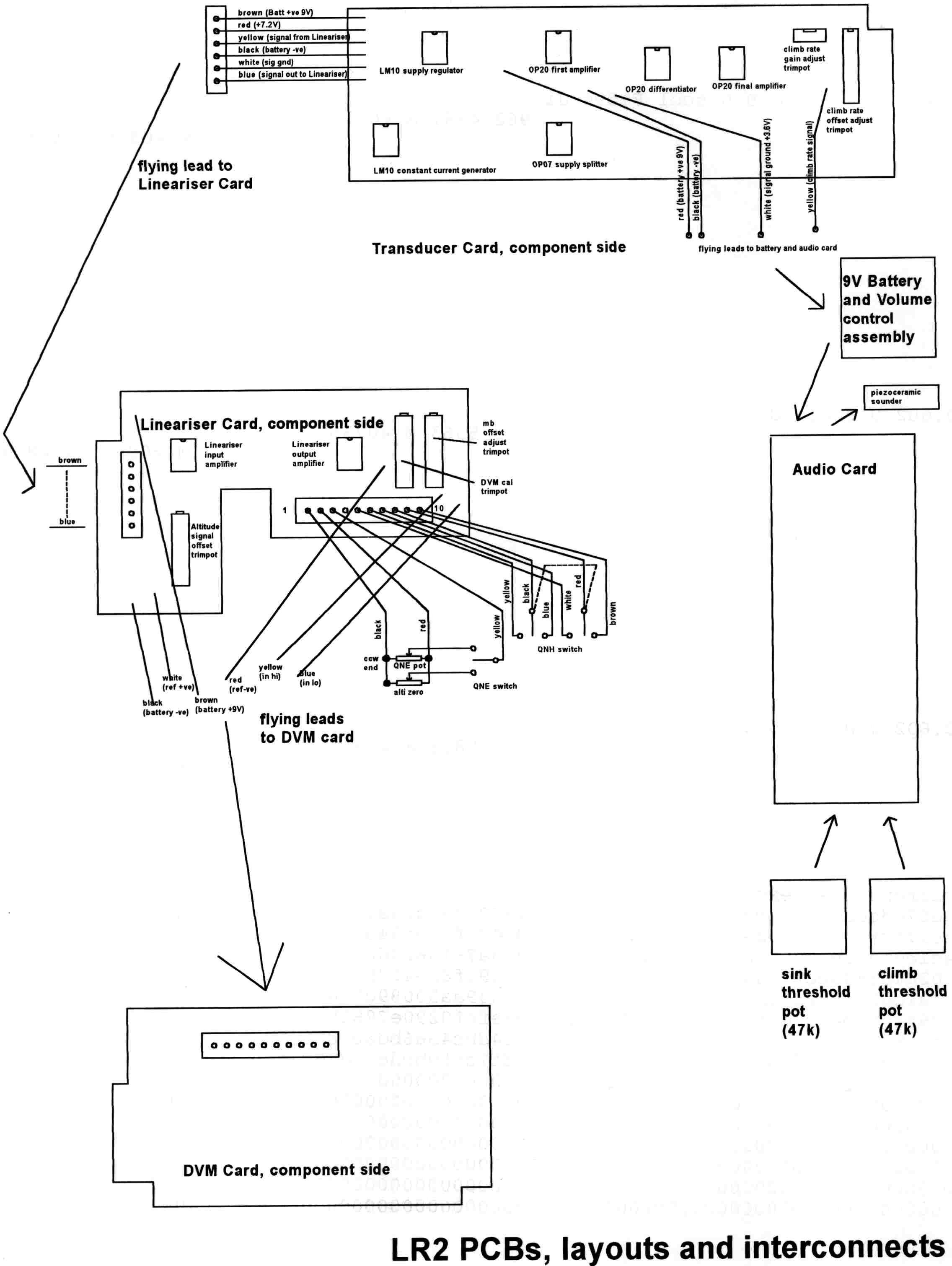

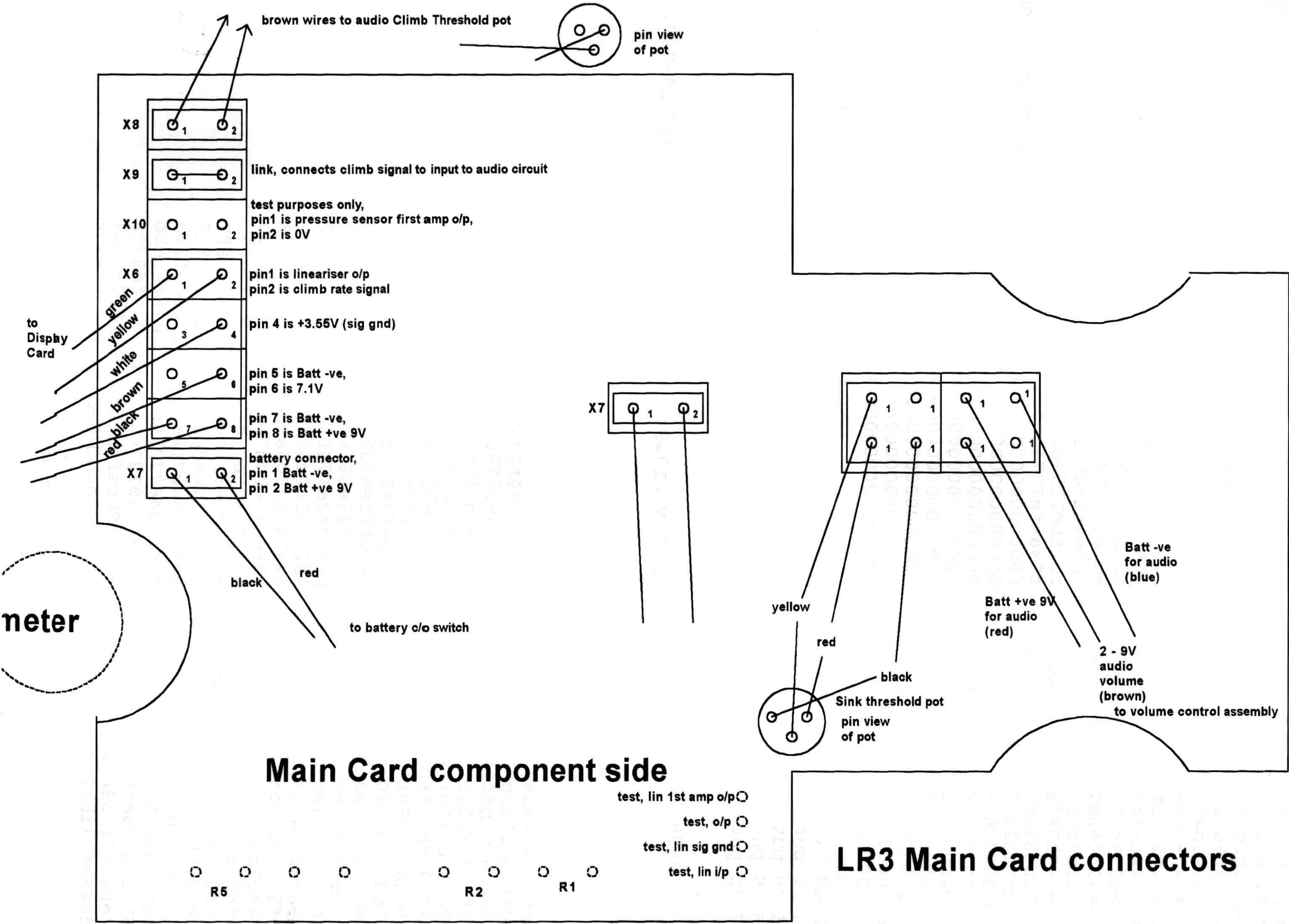

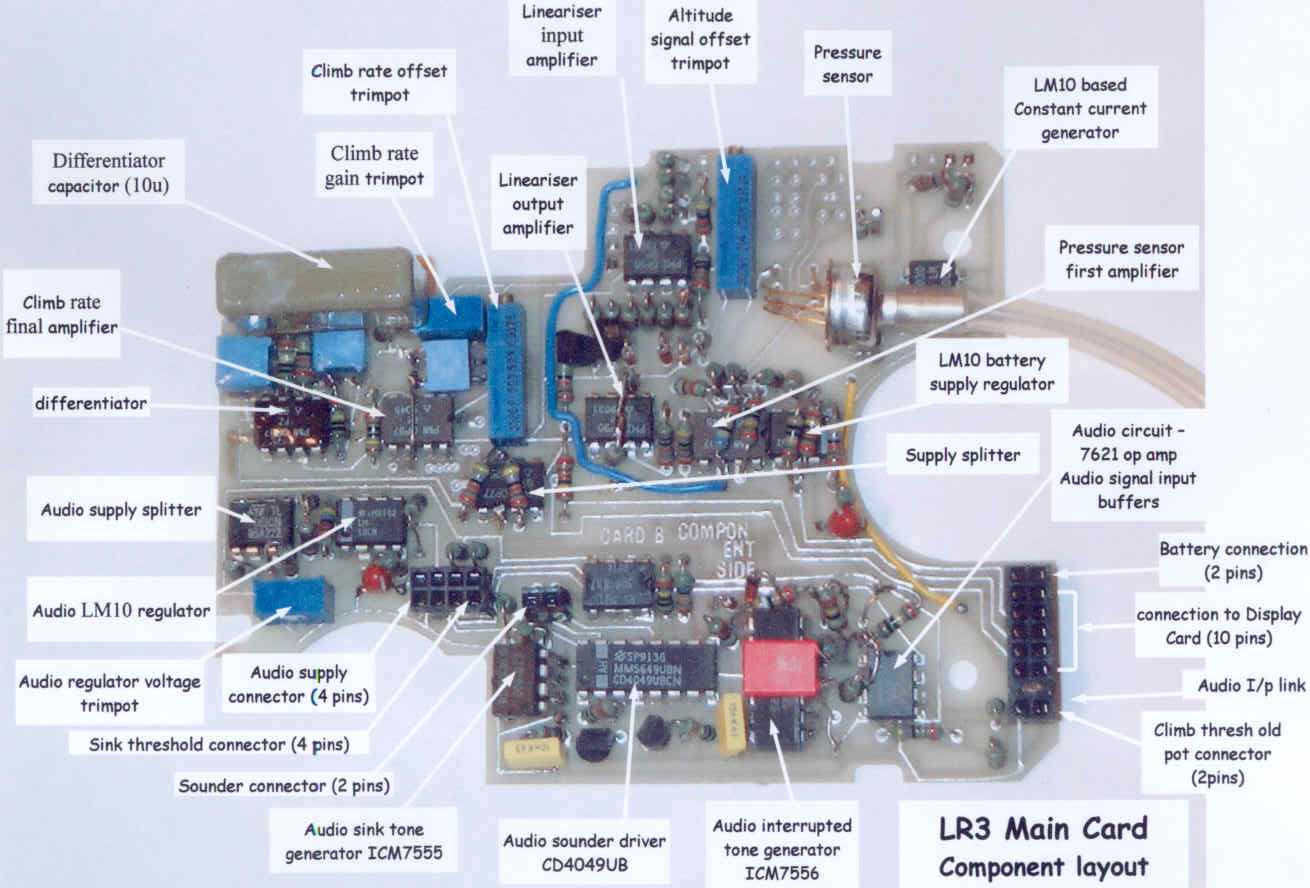

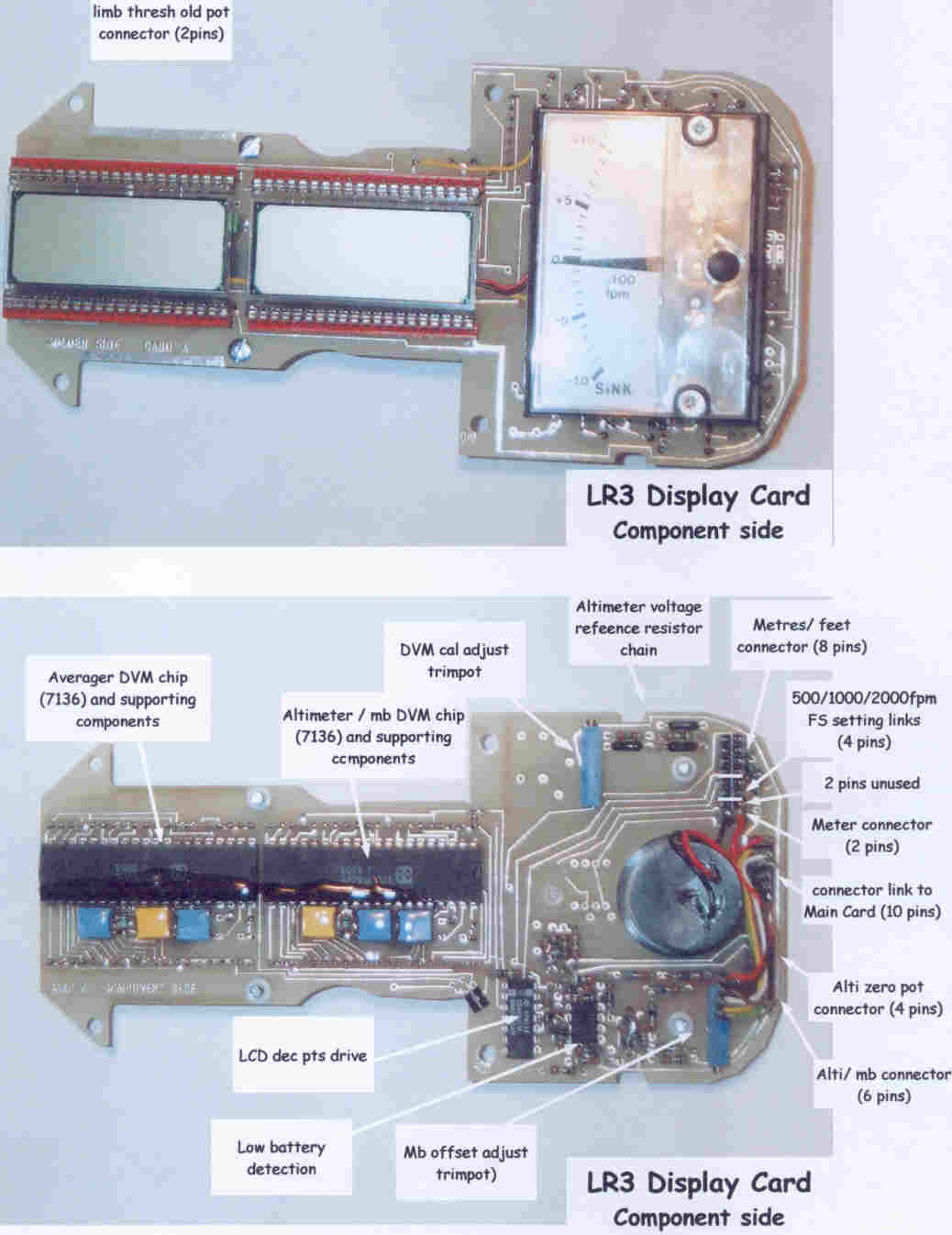

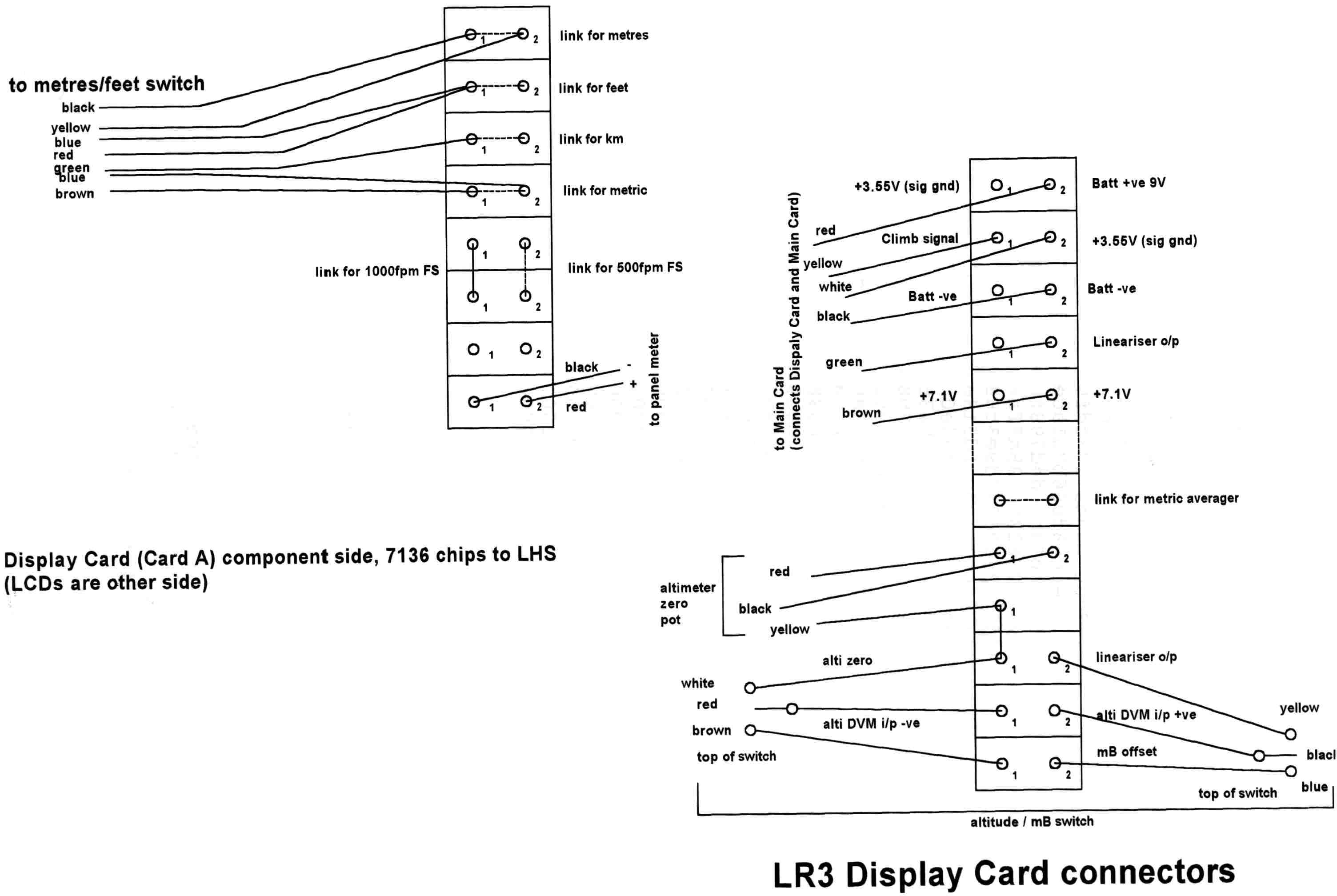

Layouts Overview | Circuits | Layouts | Dismantling LR3 Layouts: Main Card JPG Display Card JPG Wiring (Main Card connectors) JPG DXF Wiring (Display Card connectors) JPG DXF LR2 Layouts: LR2 layout and interconnections JPG DXF
