Circuit schematics
Overview | Circuits | Layouts | Dismantling
Schematic drawings for the LR3

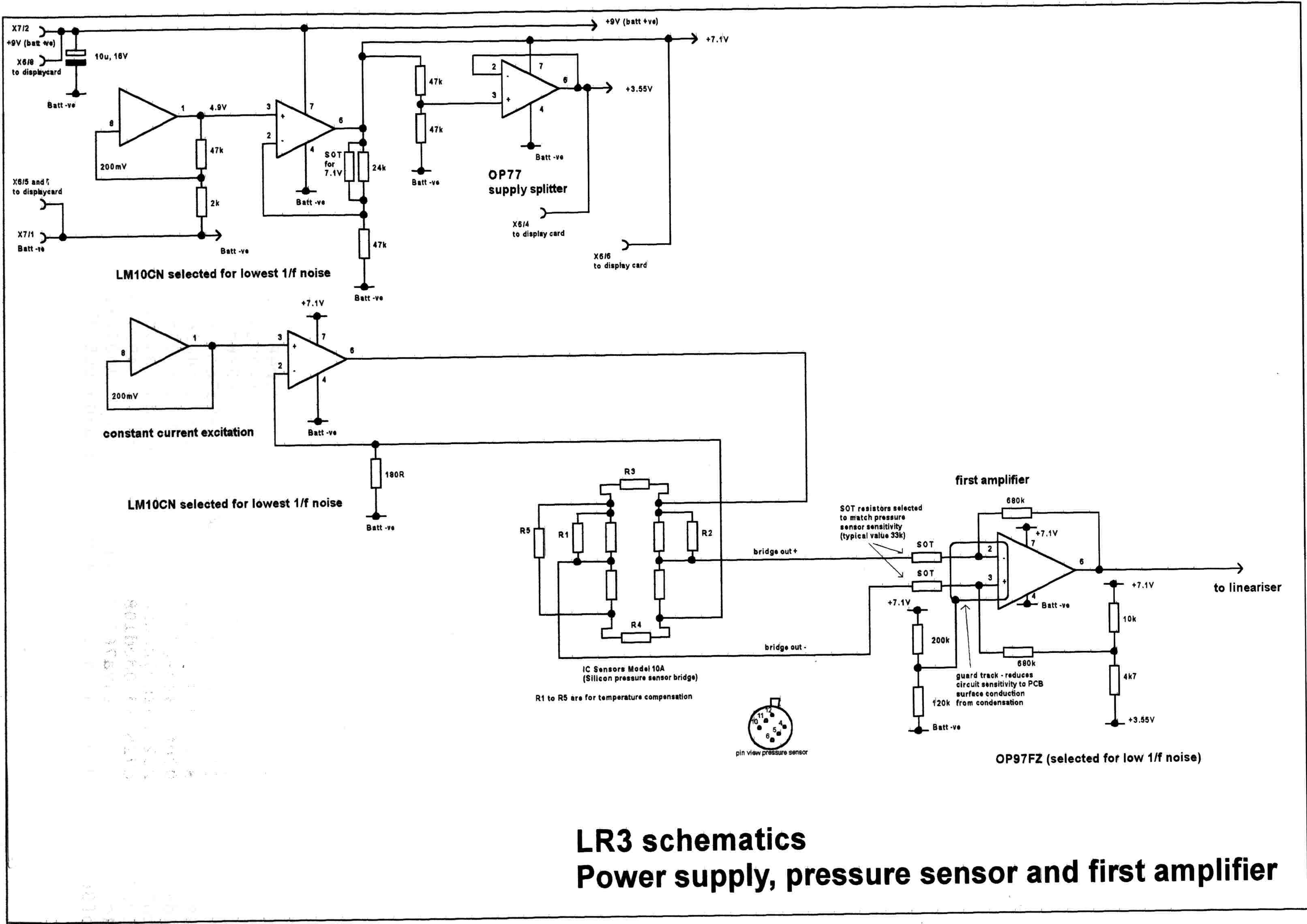

| Sheet 1 | JPG | DXF |

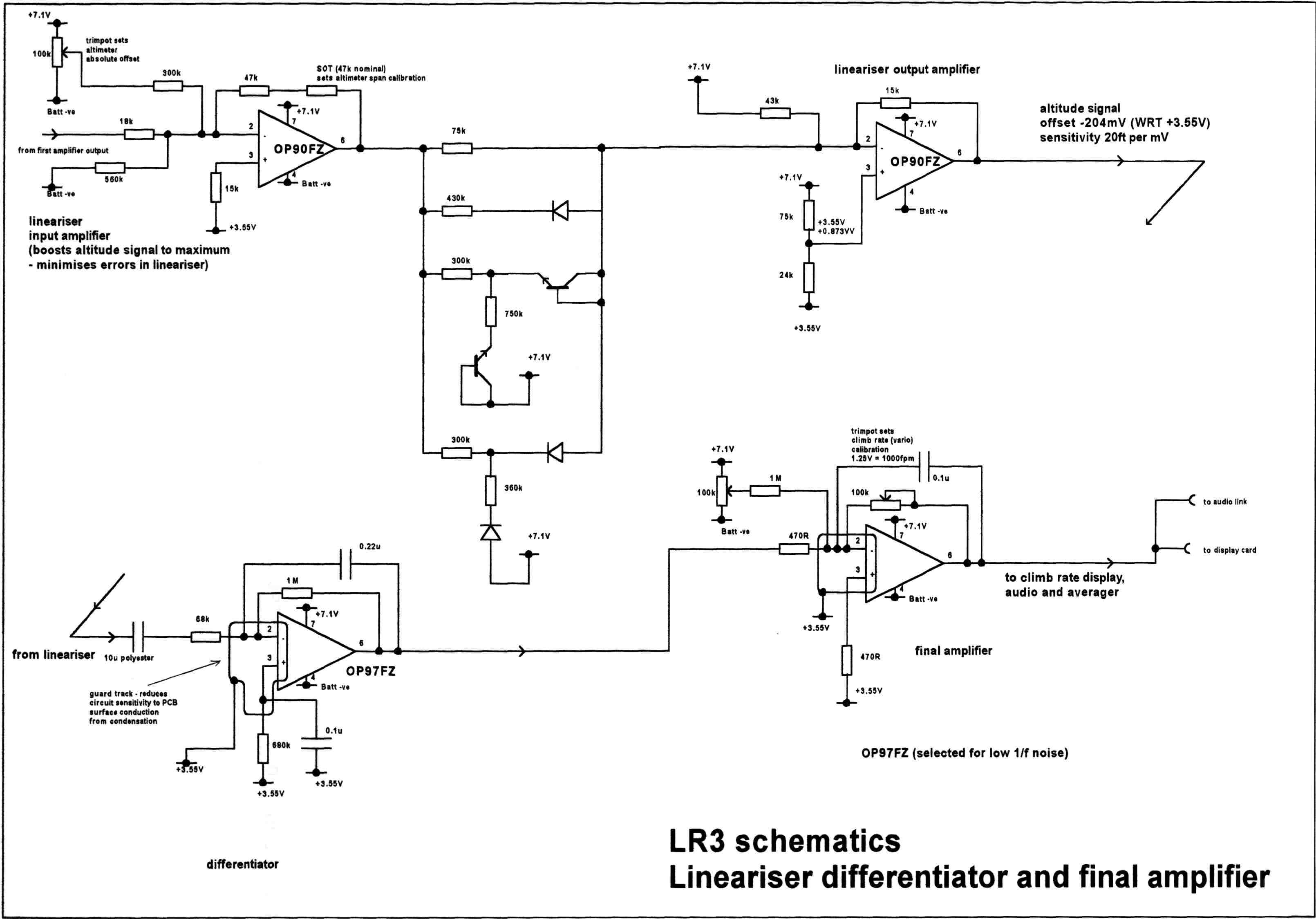

| Sheet 2 | JPG | DXF |

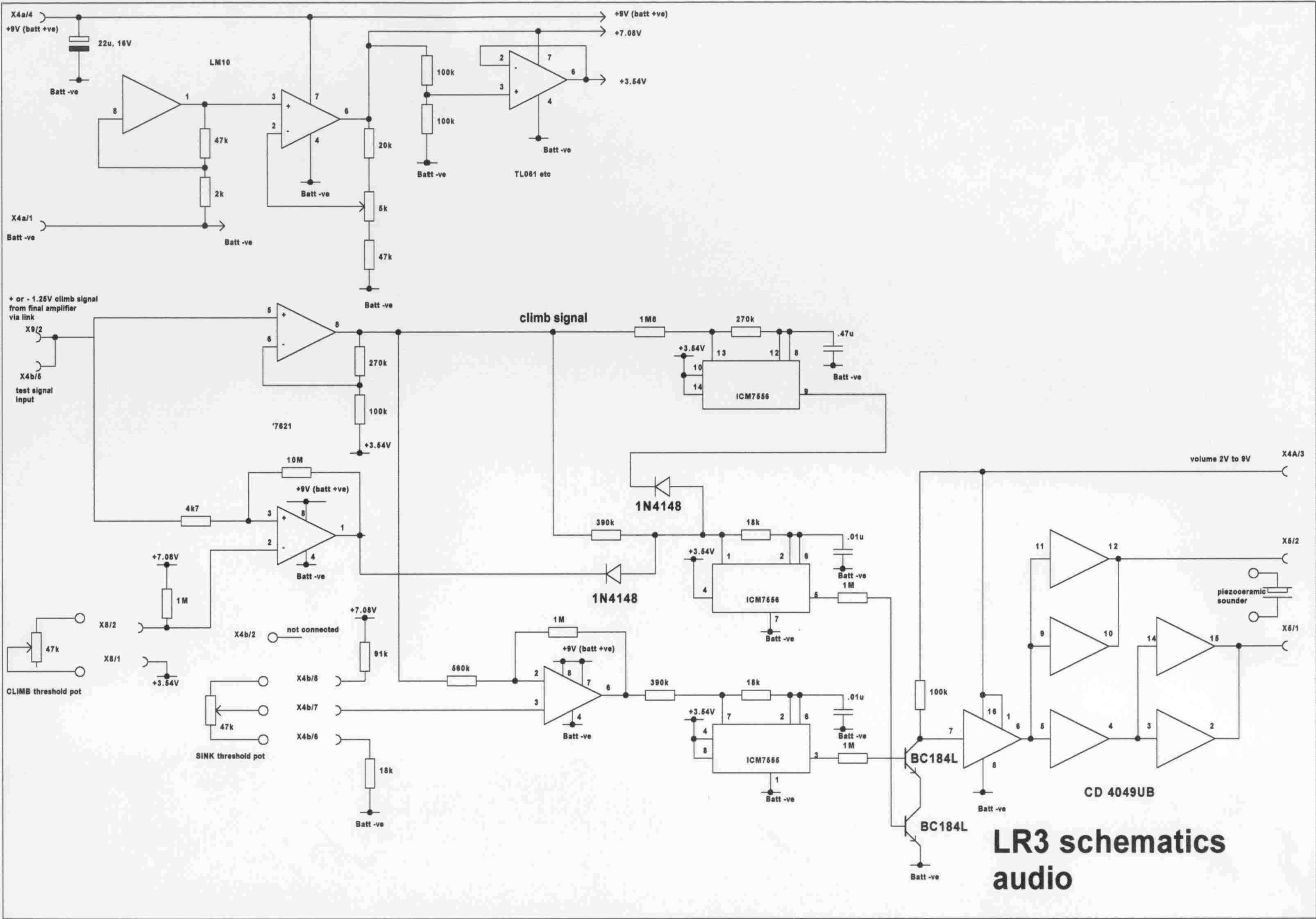

| Sheet 3 | JPG | DXF |

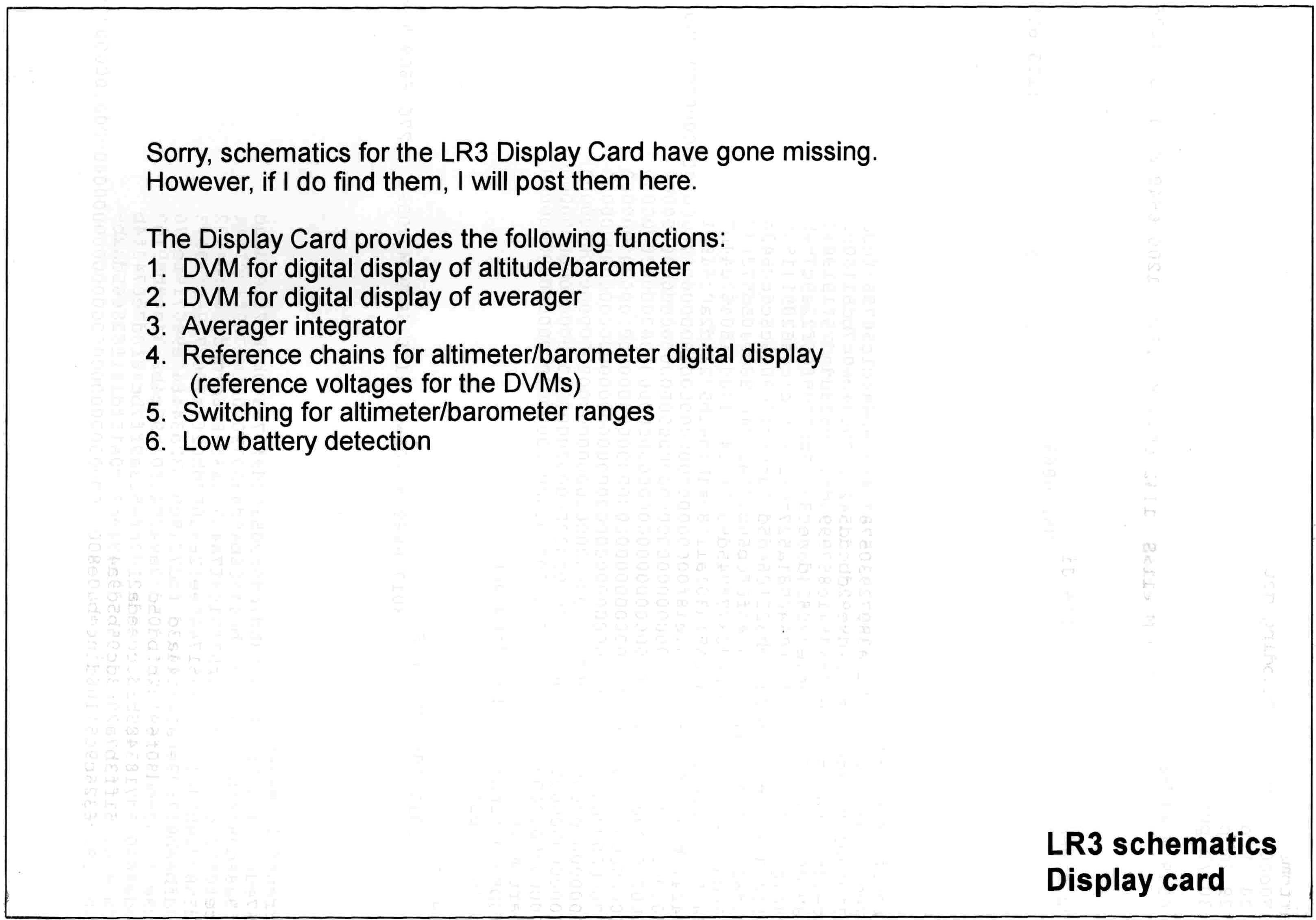

| Sheet 4 | JPG | DXF |
Schematic drawings for the LR2

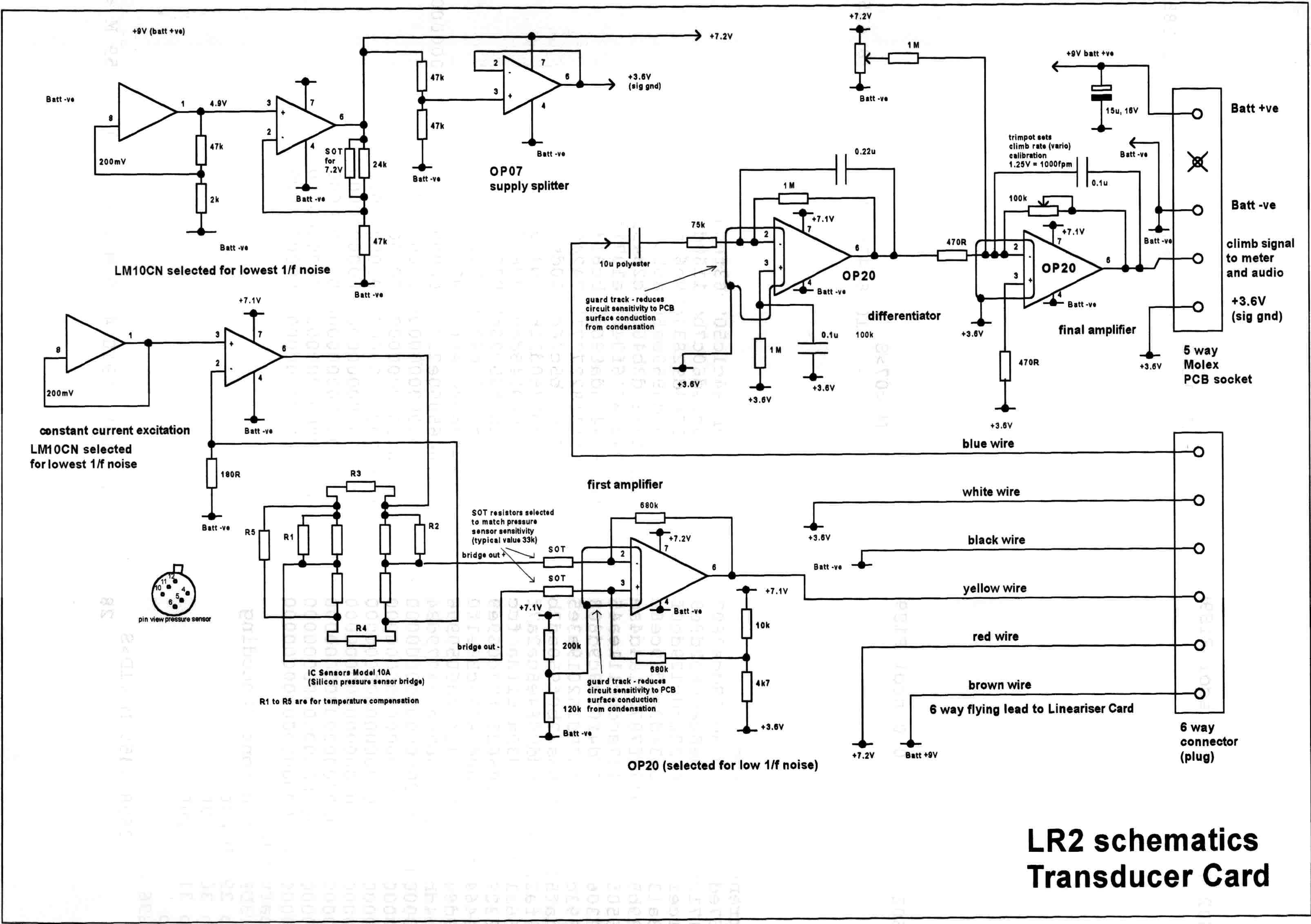

| Sheet 1 | JPG | DXF (Transducer Card) |

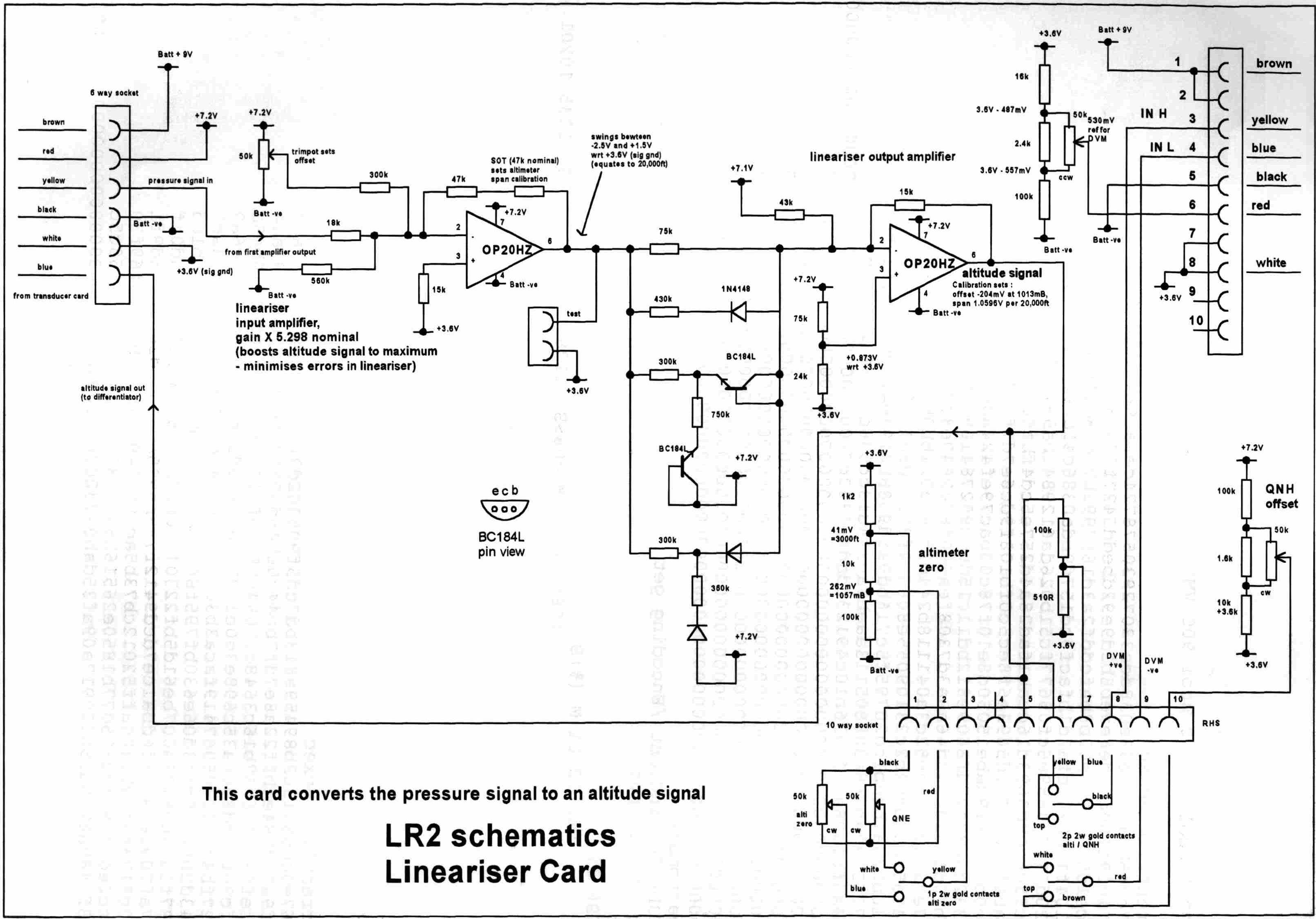

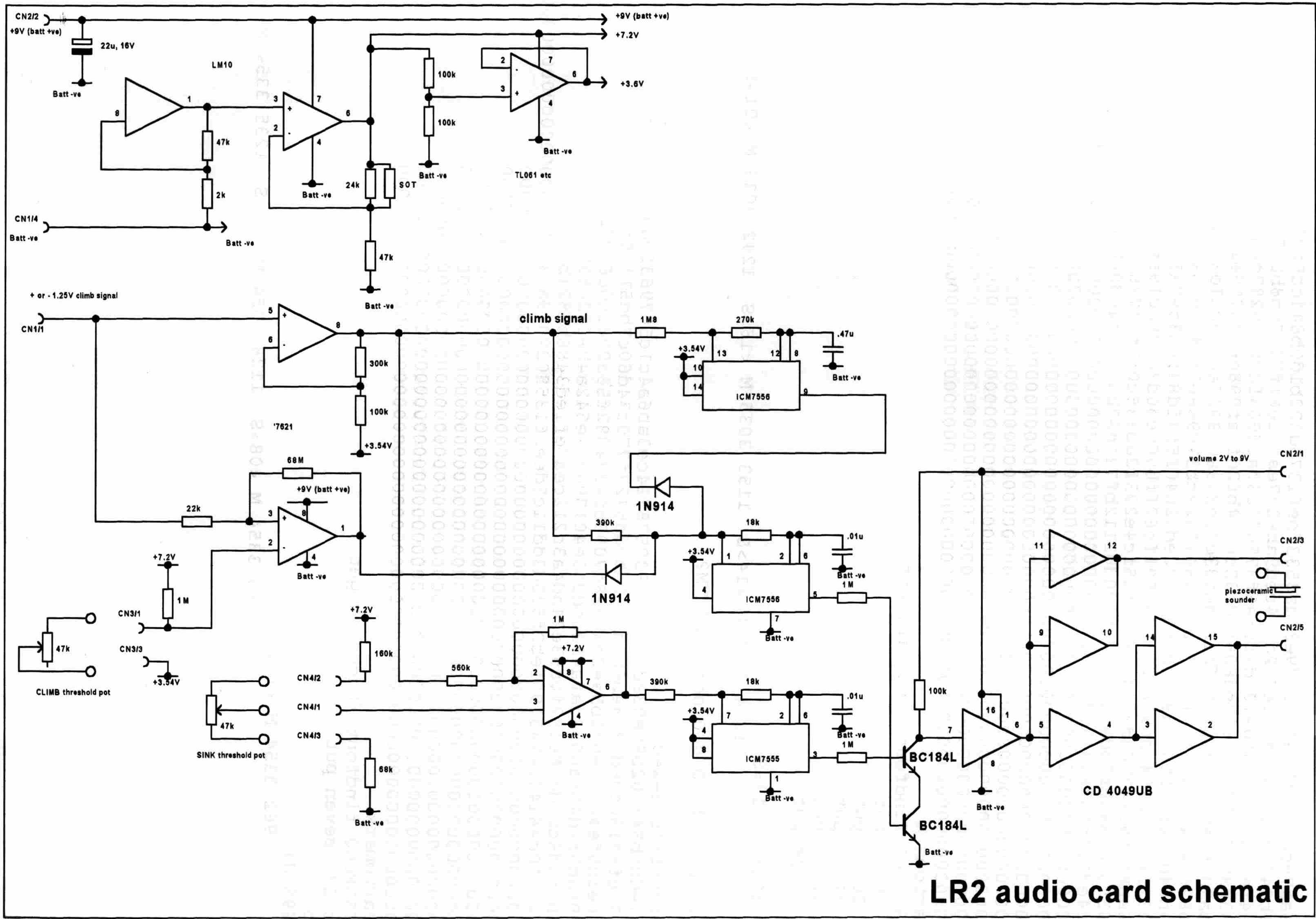

| Sheet 2 | JPG | DXF (Lineariser Card) |
| Sheet 3 | JPG | DXF (Audio Card) |

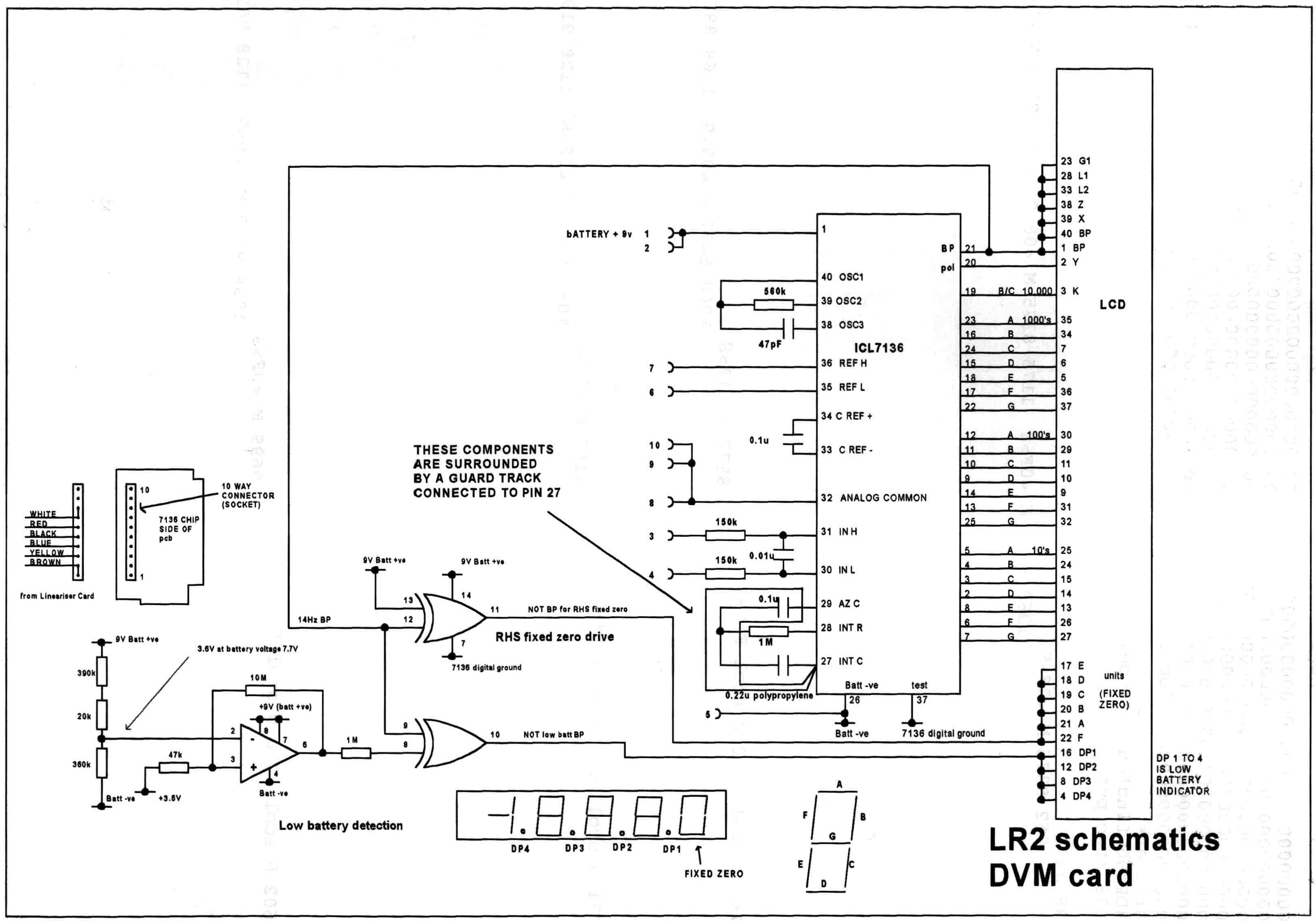

| Sheet 4 | JPG | DXF (DVM Card) |
For supporting information, see layouts and the overview
(For LR1 schematics - see the ETI article)
